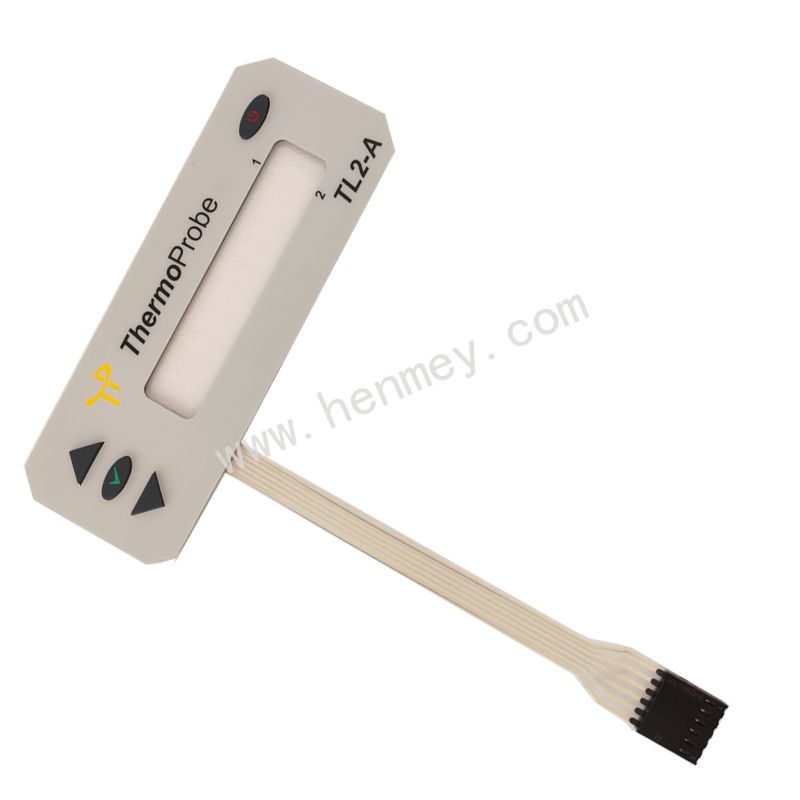

Membrane and silicone rubber keypad with connector

The control bottons composed of graphic overlay and silicone rubber keypads feature an excellent appearance, good toch feel, long service life, and excellent conduction performance.

Product Detail

Main Technical Parameters:

Conductive Resistance:<1Ω/cm
Operating Current:25-100MA,0-30VDC
Working Voltage:<50VDC
Insulative Resistance:>100MΩ250VDC
Life Expectancey:>1million/time
Operating Temperature:-40℃-70℃

Long Service Life and High Durability：

The service life can reach 100,000 to 5,000,000 operations. Contact is achieved through the vertical bouncing of the conductive film, resulting in minimal wear. Additionally, the design of silver paste contacts with a conductive carbon layer enhances wear resistance, which far exceeds that of traditional mechanical contact switches.

Sealing and Protection Performance：

It adopts an IP65-level protection structure, which effectively isolates dust, liquids and harmful gases from erosion, making it suitable for various complex environments.

Lightweight and Reliability：

With a thickness of only 1-3mm, it is light in weight and compact in structure. High integration is achieved through the combination of multiple layers of films, and it has excellent shock resistance and moisture resistance.

Aesthetics and Customized Design：

It supports screen printing technology, which can realize colorful patterns and customized designs, combining decorativeness and practicality.
